2D → 3D
Editable, native 3D CAD from any 2D source.
Shape reconstructs legacy drawings, written specifications, and neutral CAD files into fully featured, parametric models with an editable feature tree that preserves design intent — native to SolidWorks, Siemens NX, CATIA, and Autodesk Inventor, and deployed inside your environment.
Drop legacy drawings here
compressor_assembly_1992.pdf6.2 MB · PDF

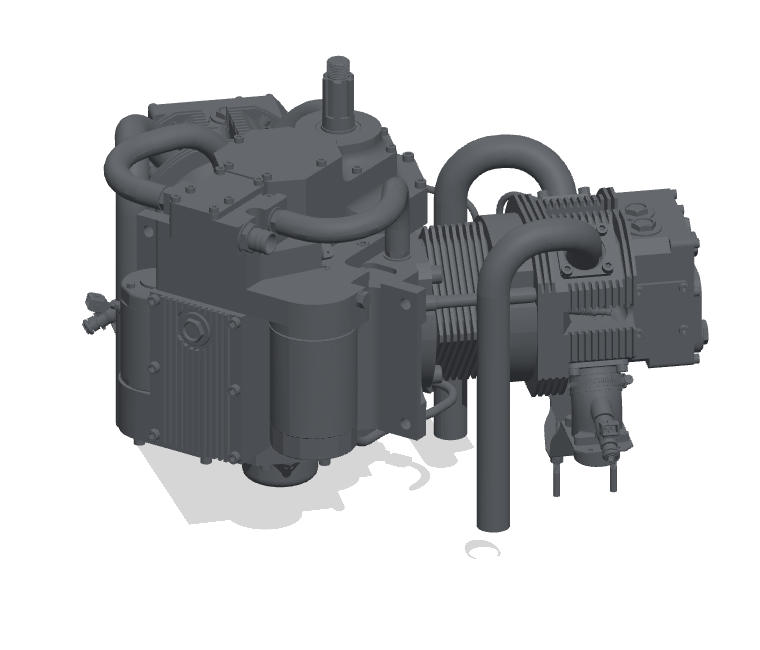

Reconstructing...Reconstructing legacy 2D at
Process
From legacy 2D to editable 3D, in three steps.
01

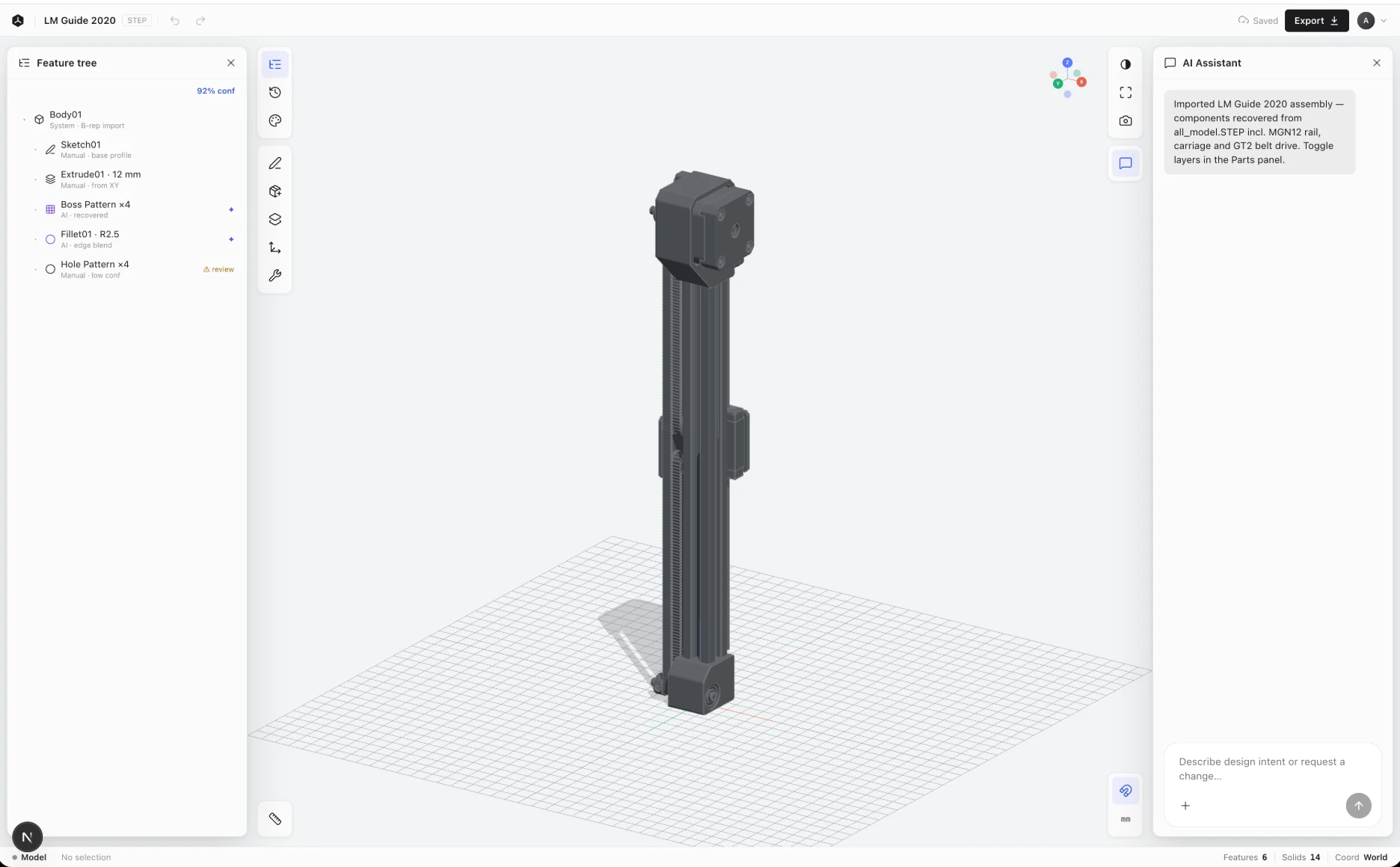

Submit the source
A scanned drawing, a written specification, or a legacy STEP/OBJ file with no feature history.
02
Shape reconstructs the part

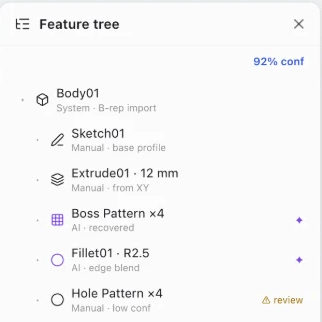

A native, parametric feature tree is rebuilt to match design intent, fully editable downstream.
03
Your engineer signs off

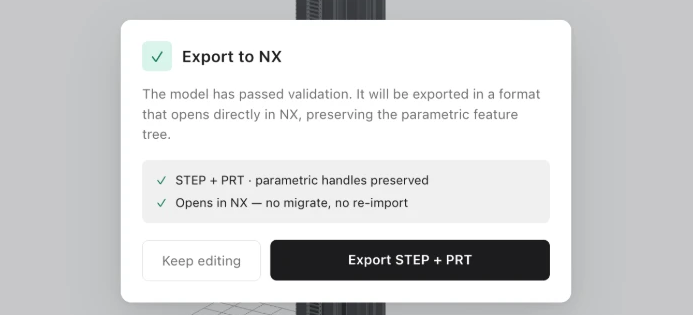

The model opens directly in SolidWorks, NX, CATIA, or Autodesk for final review.
Validated across live deployments
